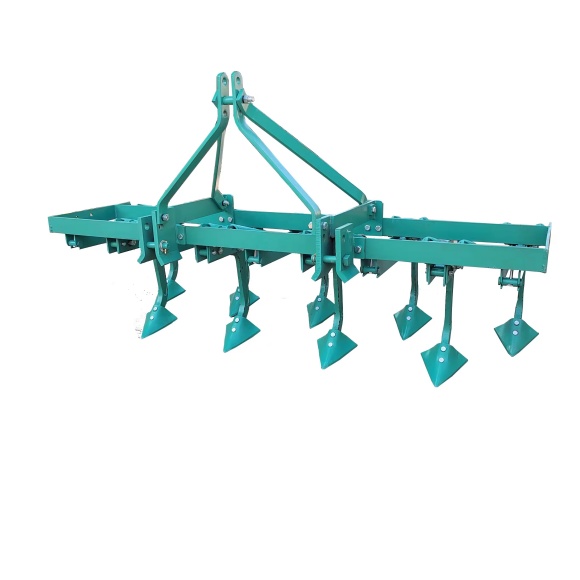

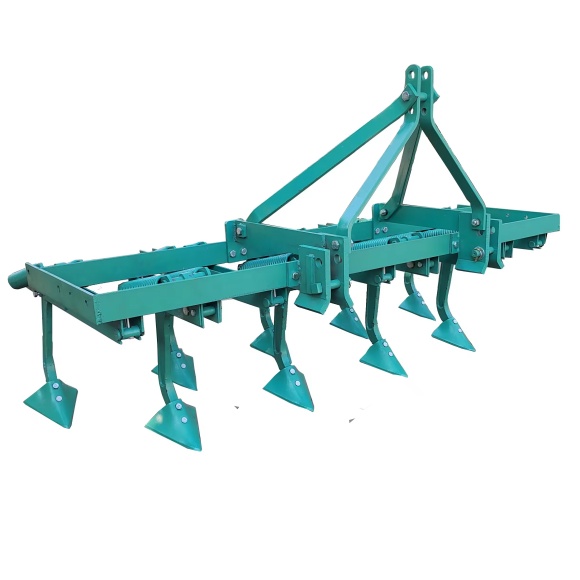

Agricultural machinery tractor mounted Cultivator Tiller Nardi Cultivator for sale

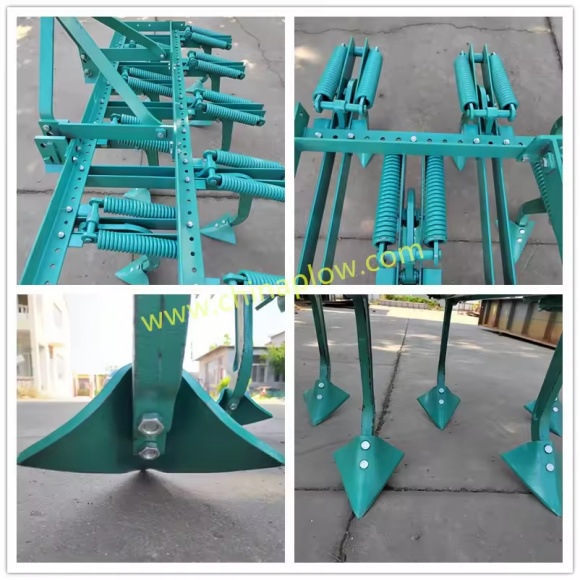

3ZT series spring cultivator is developed from adopting double-spring tension device which enables the tines could bounce when it meets with obstacles during operation and return to normal working quickly after over them, by which the tines are protected. The shovels have been heat treated, hard enough to afford the collision while engage with the rocks, roots etc. It has advantages of easy operation and the depth to be easily controlled. This machine is suitable to cultivate and loosen soil in the corn, cotton and beans field.
TECHNICAL SPECIFICATION
Model | No.of tine | Working width | Working depth | Weight | Matched Power | Linkage |
3ZTN-7 | 7 | 1700mm | 100-350mm | 290kg | 40-80hp | Three 3-point Cat.II |
3ZTN-9 | 9 | 2200mm | 100-350mm | 345kg | 60-100hp | |
3ZTN-11 | 11 | 2700mm | 100-350mm | 410kg | 80-150hp |
