Agricultural Equipment Farm Land Laser Leveling Equipment Laser Land Scraper

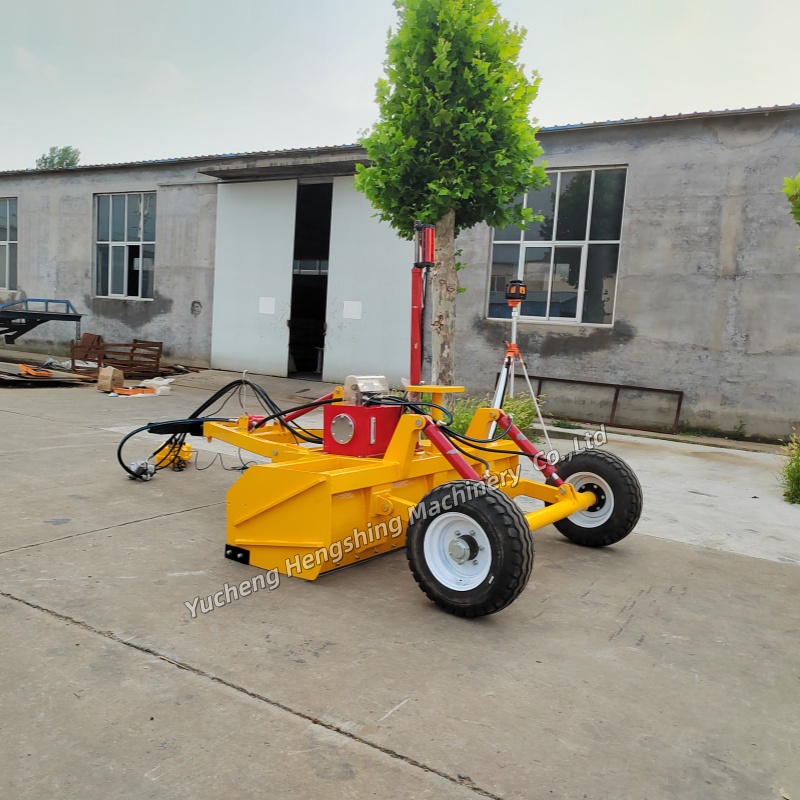

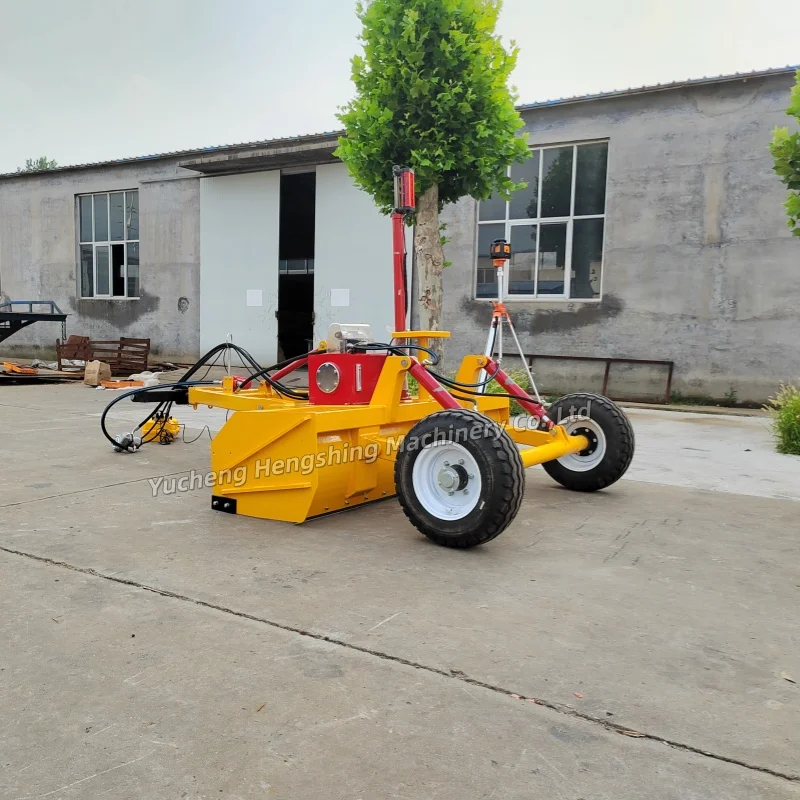

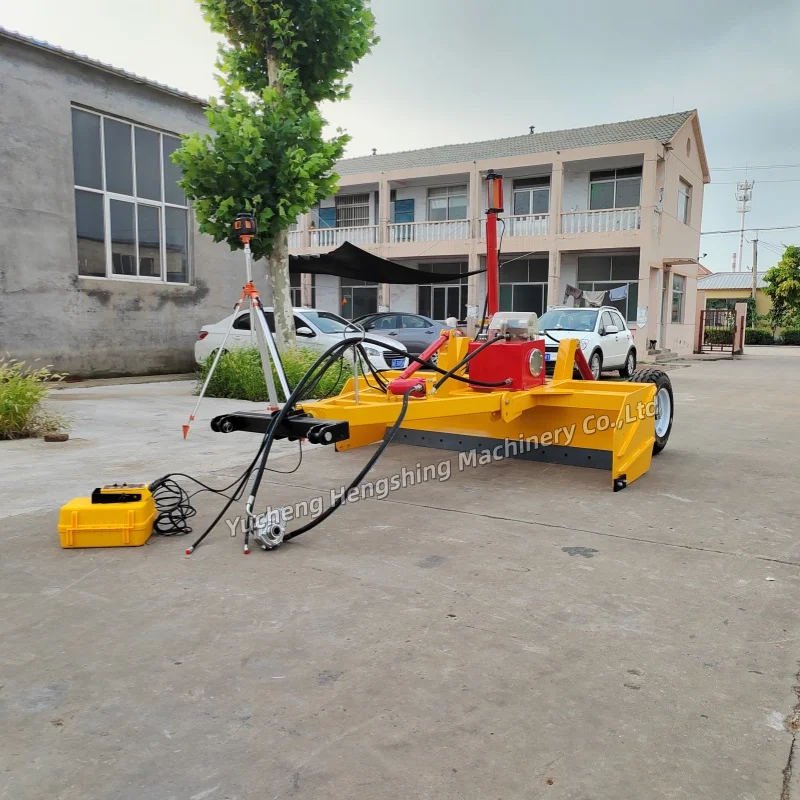

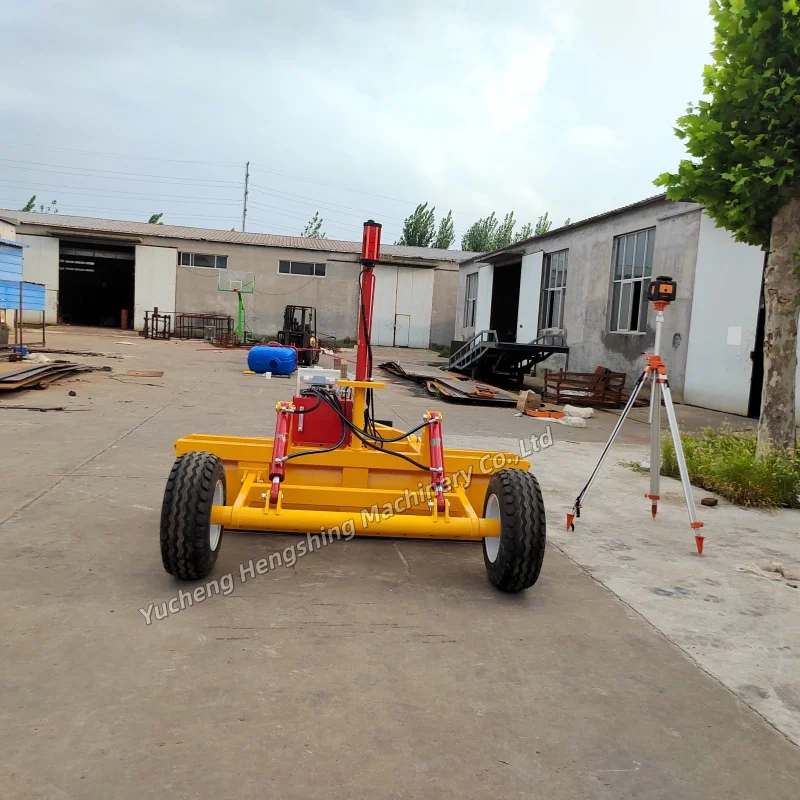

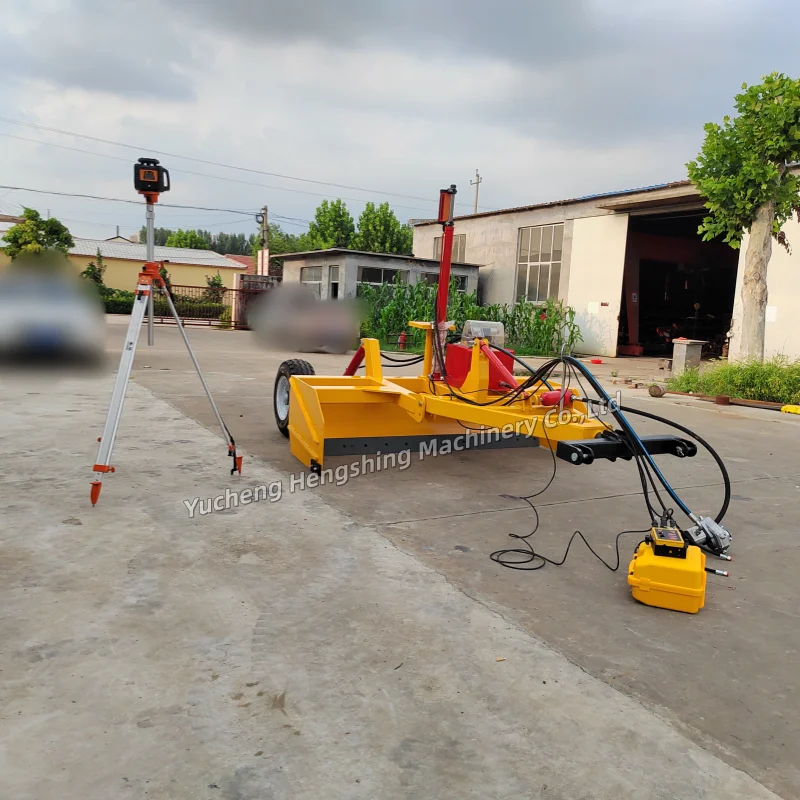

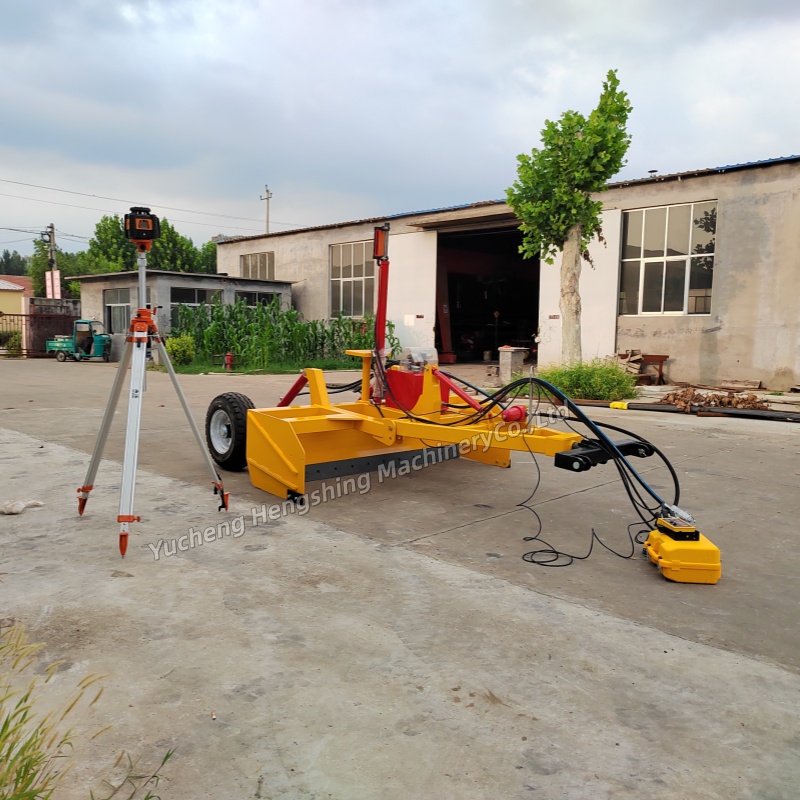

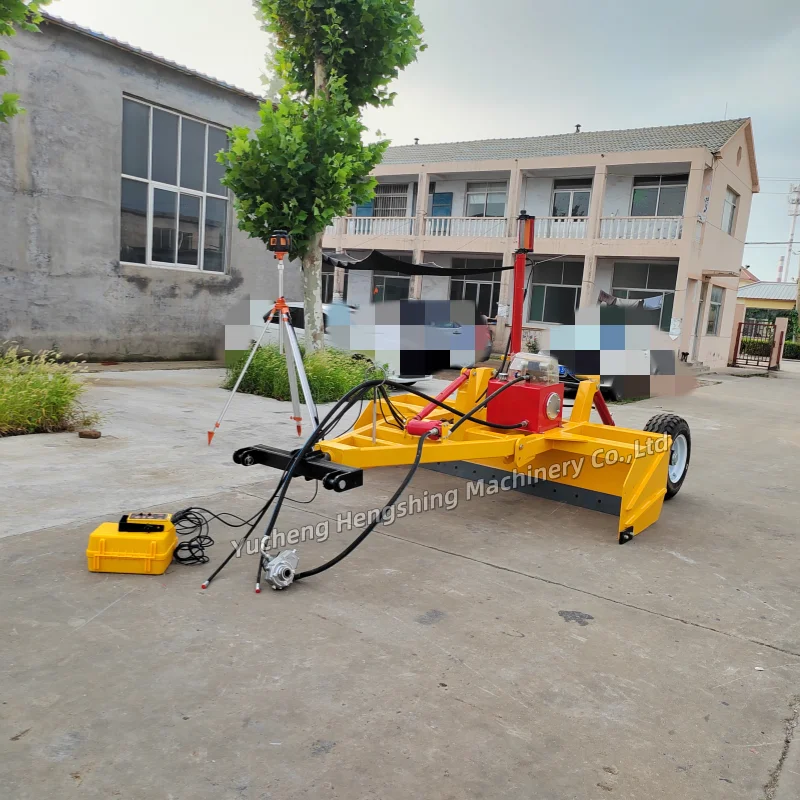

Product Show


YOU MAY LIKE OTHER PRODUCTS


FAQ

Q1: Are you a factory or trading company?

We are a factory with self-supported import and export right.

Q2: How can I trust on your company?

We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict quality control and reasonable price, throughout is the pledge we to each customer.

Q3: Where is your factory located? How can I visit there?

Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us!

Q4: How can I place an order from your website?

It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest time. You can also e-mail us directly or join us on live chat for instantaneous answers.

Q5: How can I make the payment?

Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice.
30% as prepayment and the balance when the goods are ready for shipping.

Irrevocable L/C at sight could be also accepted.

Q6: What's the Payment terms?

FOB, the price of the implement without sea shipment costs.
CIF, including the unit cost + marine insurance + Shipment charges to your destination port.
CFR, including the unit cost + Shipment charges to your destination port.

Q7: At which port do you usually ship the good?

We usually ship goods via Qingdao, Shanghai, Ningbo, Yiwu and Guangzhou of China.

Q8. How about the Warranty?

12 months warranty from the time of the goods arrive at destination.

My Contact



  Contact Now
Product Details

Product descriptions from the supplier

Product Description

Agricultural equipment farm land laser leveling equipment  laser land scraper

The laser land leveler uses laser technology to level the land and farmland precisely. The laser transmitter emits a rotating beam to form a light plane on the work site. This light plane is the reference plane for leveling the ground, and the light plane can be flat or inclined. The laser receiver is installed on the telescopic pole of the scraper. When the receiver detects the laser signal, it continuously sends signals to the control box. After the control box receives the signal, it makes corrections. The corrected signal controls the hydraulic valve to change the flow direction and flow rate of the hydraulic oil to the cylinder, and control the height of the scraper automatically.

Model

Unit

12PW-200Z

12PW-250Z

12PW-300

12PW-350Z

Working width

mm

2000

2500

3000

3500

Machine weight

kgs

1200

1250

1340

1390

Blade angle


Adjustable by hydraulic cyliner

Efficiency

hm²/h

1.1-1.6

1.3-1.8

1.6-2.0

1.9-2.3

Max buried depth

mm

200

Working speed

Km/h

5-15km/hour

Matched tractor power

HP

≥60

≥80

≥100

≥120

Product form
