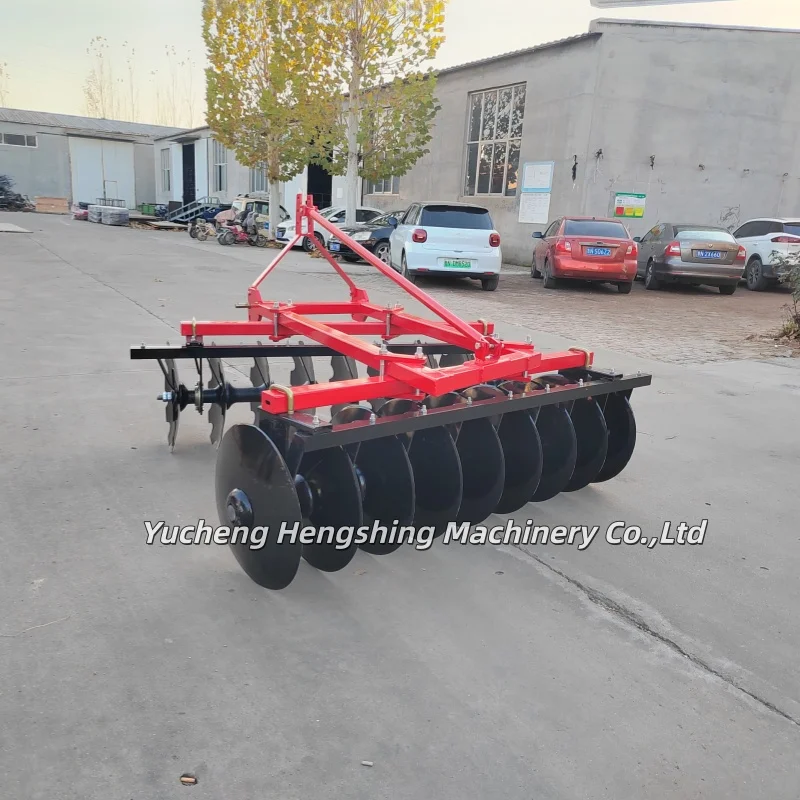

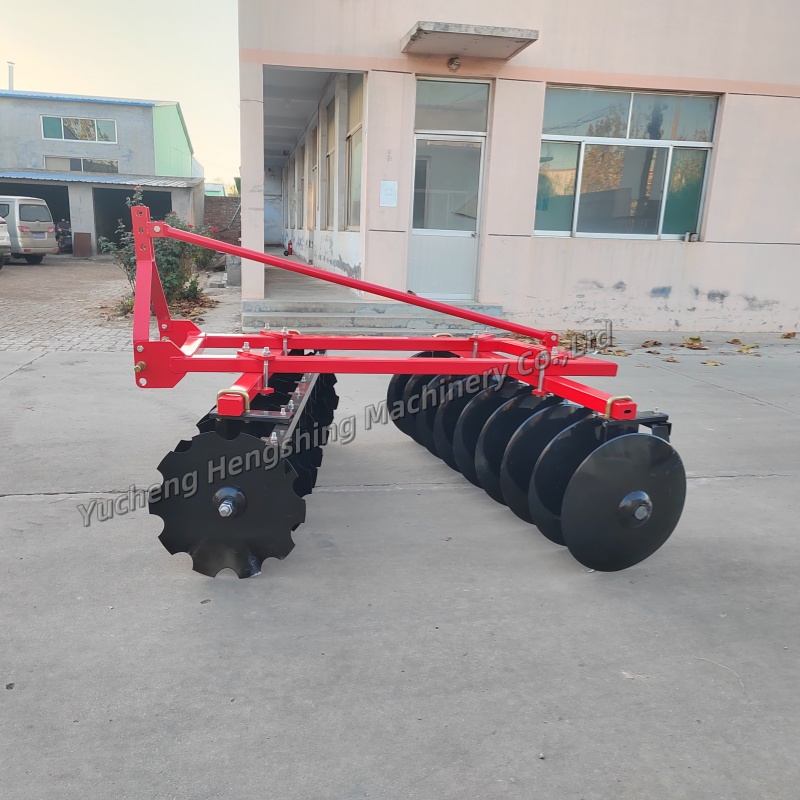

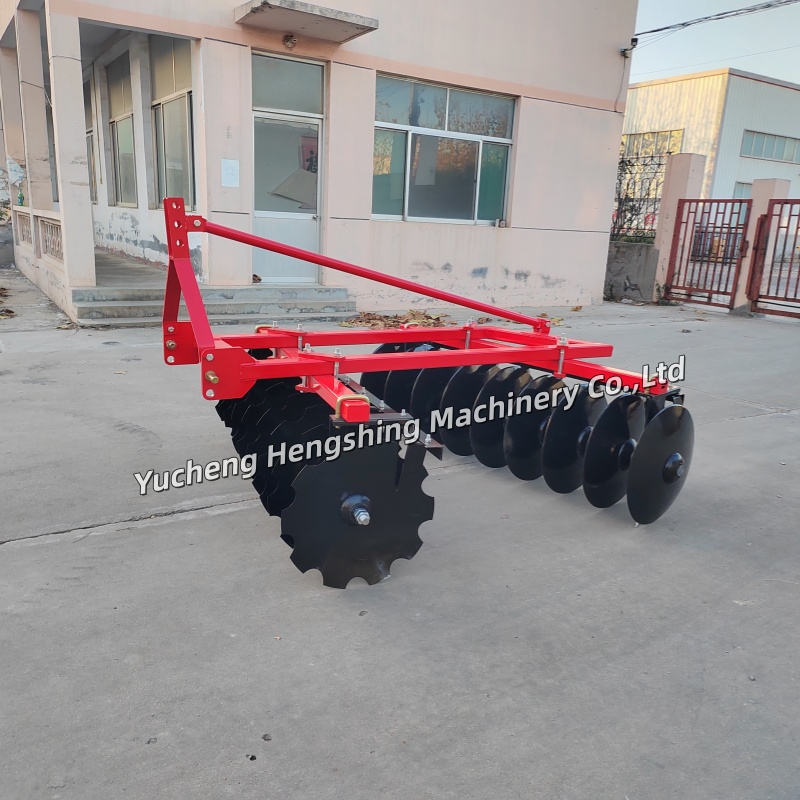

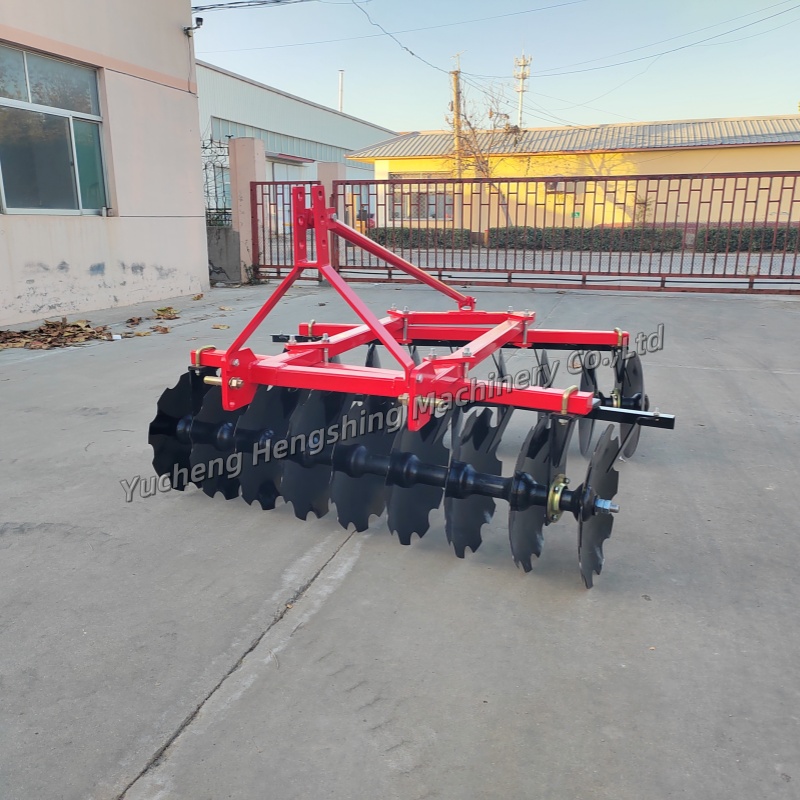

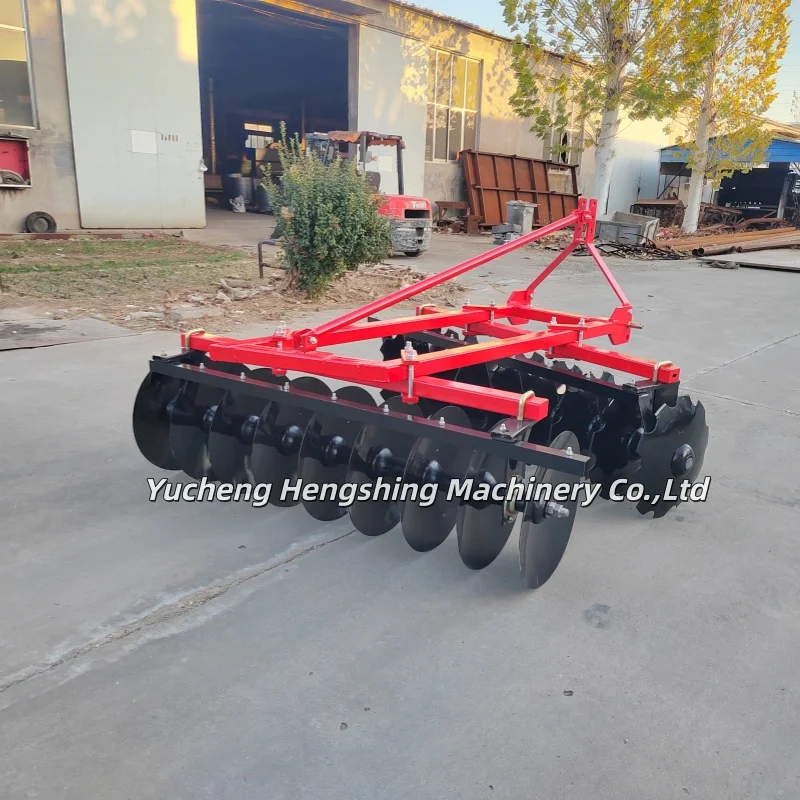

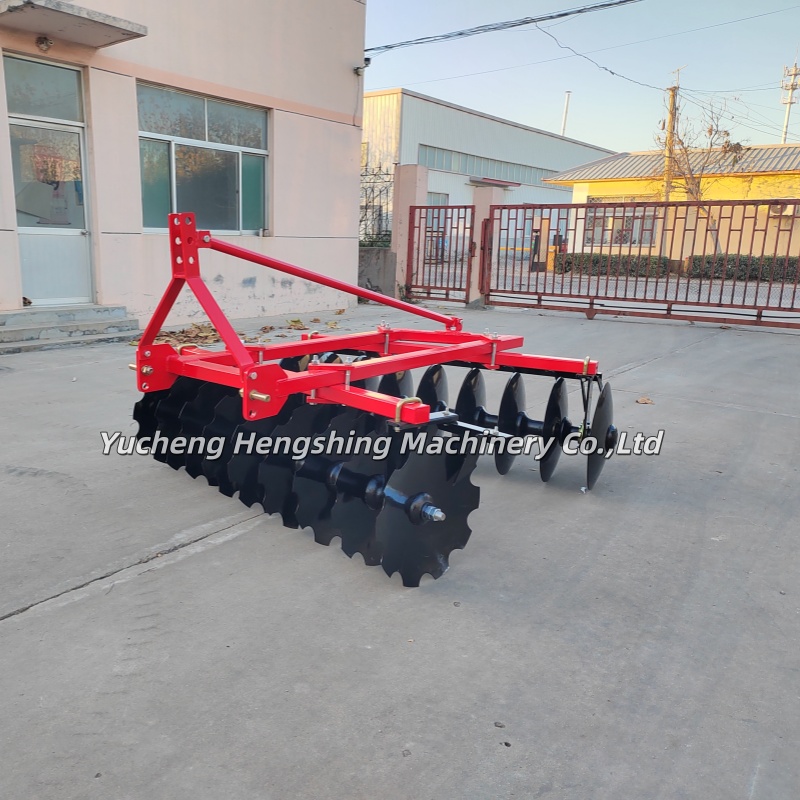

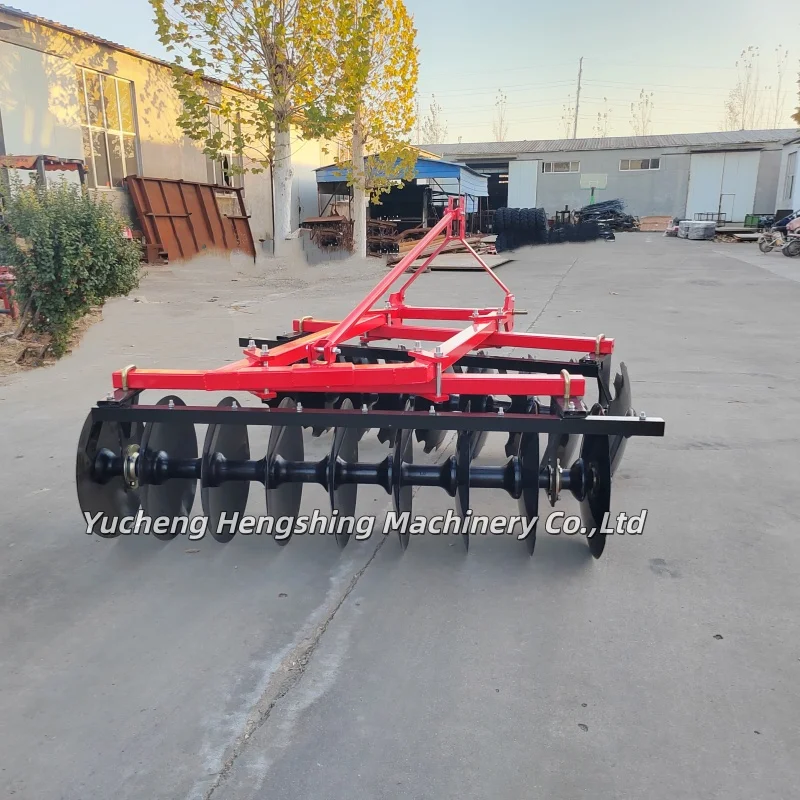

Agricultural Tractor Harrow 3 Point Mounted House Bearing Assembly Disc Harrow

PRODUCT OVERVIEW

Tractor 3 point linkage disc harrow

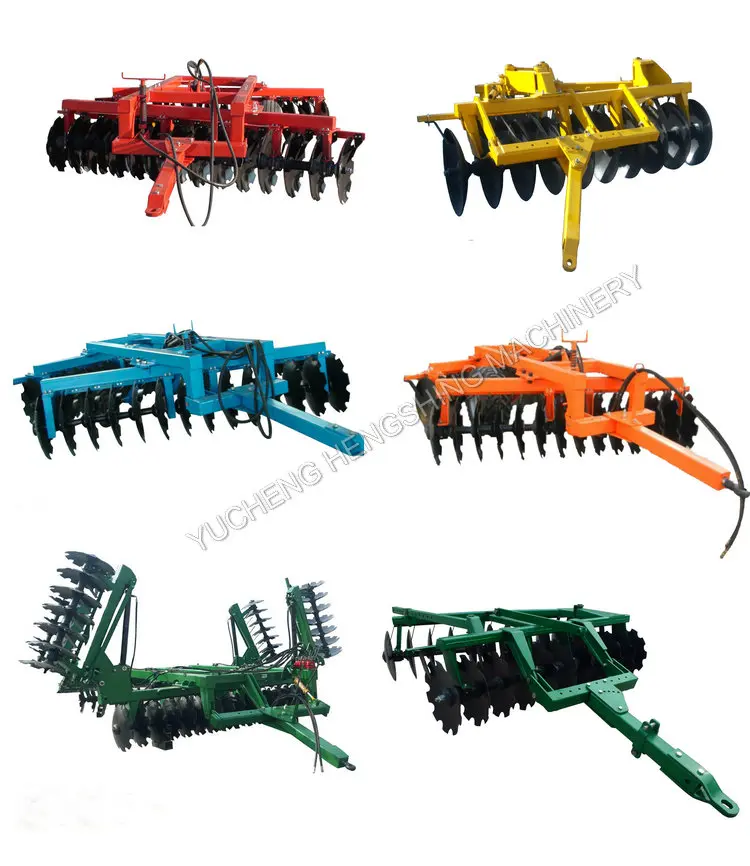

Tractor heavy duty hydraulic disc harrow

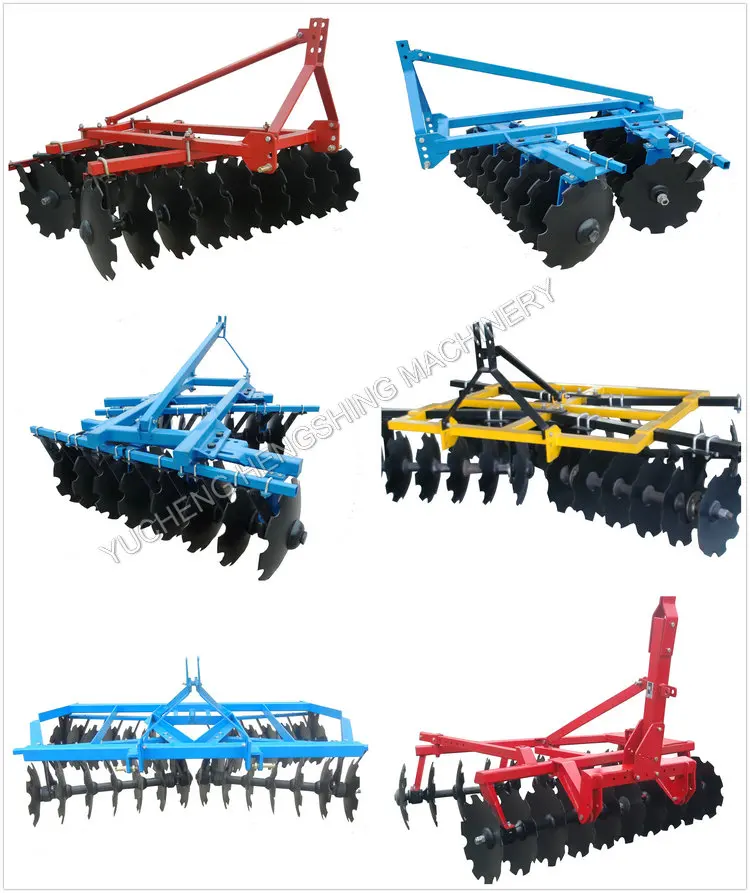

Agricultural Tractor Harrow 3 Point Mounted House Bearing Assembly Disc Harrow

PRODUCTION AND DELIVERY

Agricultural Tractor Harrow 3 Point Mounted House Bearing Assembly Disc Harrow

Yucheng HengShing Machinery Co. Ltd

Yucheng HengShing Machinery Co. Ltd, is a professional agricultural implements manufacturer with rich production and exporting experience. Matched with 12-200hp four wheels tractors, our main products include Disc Plough, Disc Harrow, Share Plow, Rotary Tiller, Grass Mower, Hay Rake, Subsoiler, Land Grader, Fertilizer Spreader, Corn Thresher, Farm Trailer, Boom Sprayer, Disc Blade, Casting Parts and so on. These farm implements and spare parts are exported to 70 countries and regions worldwide including Switzerland, Russia, Spain, Hungary, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, etc.

Contact Now

Product Details

Product descriptions from the supplier

Agricultural Tractor Harrow 3 point mounted House Bearing Assembly Disc Harrow

PARAMETER

This agricultural machinery disc harrow bearing assembly tractor agri disc harrow for sale is mainly applicable to clean the crop residue before tillage, break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. This 3-point linkage disc harrow can be matched with normal tractors from 30hp to 100hp. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil, the soil surface is smooth and loosening after harrowing. The disc blade can be round or notched as your requirements.

TECHNICAL SPECIFICATION

Model	Unit	1BJX-1.6	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Working width	mm	1600	1800	2000	2200	2400	2500
Working depth	mm	140
Q’ty of disc	Pc	14	16	18	20	22	24
Total machine weight	kg	350	380	420	470	540	650
Tractor power required	hp	30	40	50	60	70	80-100
Linkage type		Tractor Three-point suspension
