Potato Harvester Hung by Direct Selling Tractor of Manufacturer

Product show

Potato Harvester Hung by Direct Selling Tractor of ManufacturerPotato Harvester Hung by Direct Selling Tractor of Manufacturer


  Contact Now
Product Details

Product descriptions from the supplier

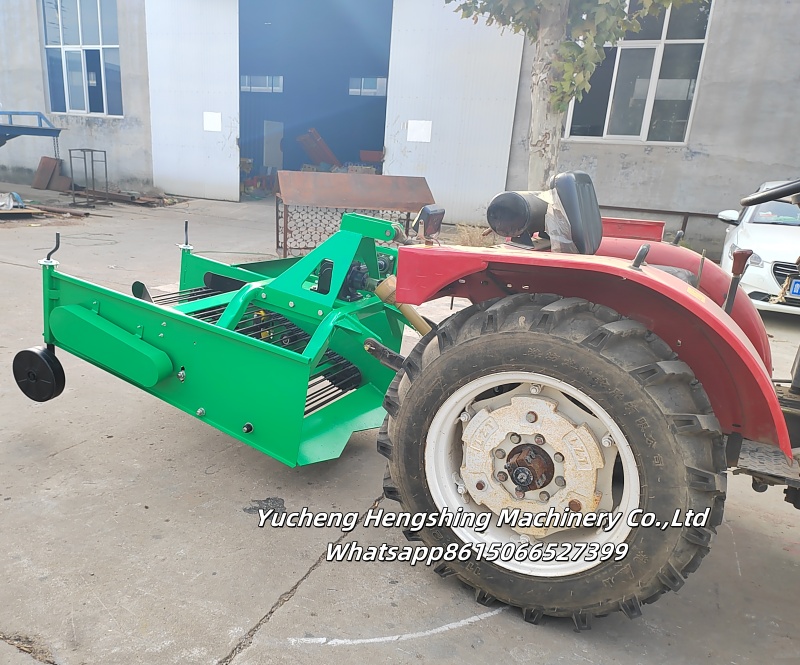

Potato Digger 4U series of sweet potato harvester is mounted with the tractor of 12-60hp with back power and side power output shaft. Our tractor potato harvester is intended for potato excavation , tubers partial separation from the soil and tubers laying on field surface for their further picking up. A triangular beater is set on the potato harvester. The working principle of this potato digger is that the digging shovel digs up the soil and crops through the impetus of the tractor. And the digging shovel make crop and soil separate though vibration sieve, the soil first drip down from the clearance of vibration sieve, finally the crop crashed down on to the road from the back.

Advantages:

  • It is a tractor mounted potato harvester for 20-80hp tractor.

  • Dig the potatoes safely without cutting or damaging single potato.

  • Not to affect the next crop's growth.

  • Driven by PTO in rotating speed 540r/min.

Product parameters

Model

Unit

4U-1

4U-2

Harvesting rows


1

2

Working width

mm

500/600

900/1300/1500

Working depth

mm

100250


PTO Rotation speed

r/min

540720

PTO shaft spline


6 spline

Total weight

kg

160

260/335/390

Matched power

hp

12-20/2030

40/50/70

Linkage


Three-point   suspension I type

Three-point   suspension II type

The items selectable


PTO   transmission shaft in 8 spline





Product form
